WHAT IT DOES
Slowly gathering and organising loose timber manually is now a thing of the past. Stand-alone automated picking is here!
With a compact footprint and newly developed software, Vekta’s dual-level PickFeeder system intelligently scans, selects, and delivers timber to the stack at lightning speed – eliminating downtime, fatigue, and costly errors.

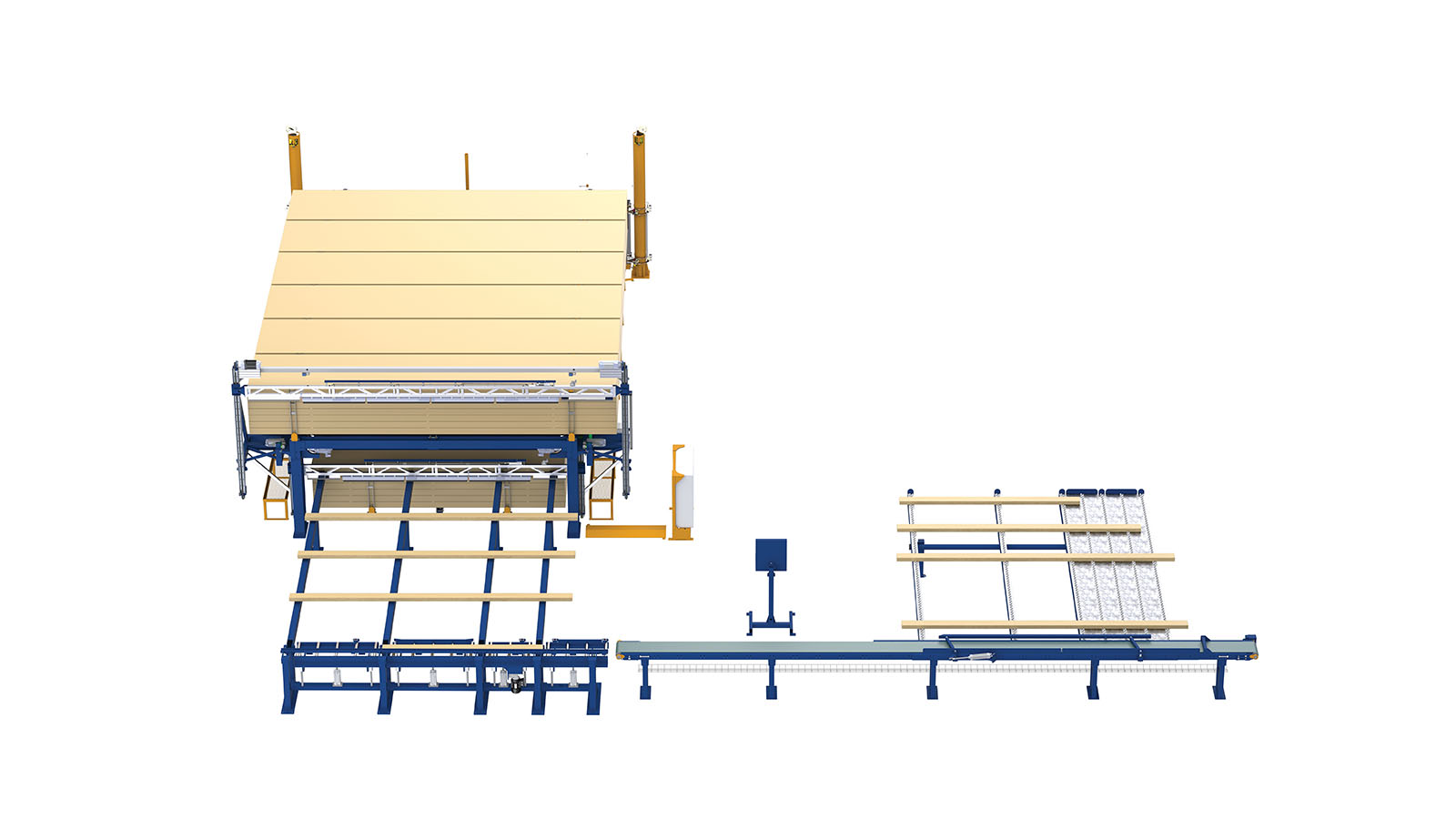

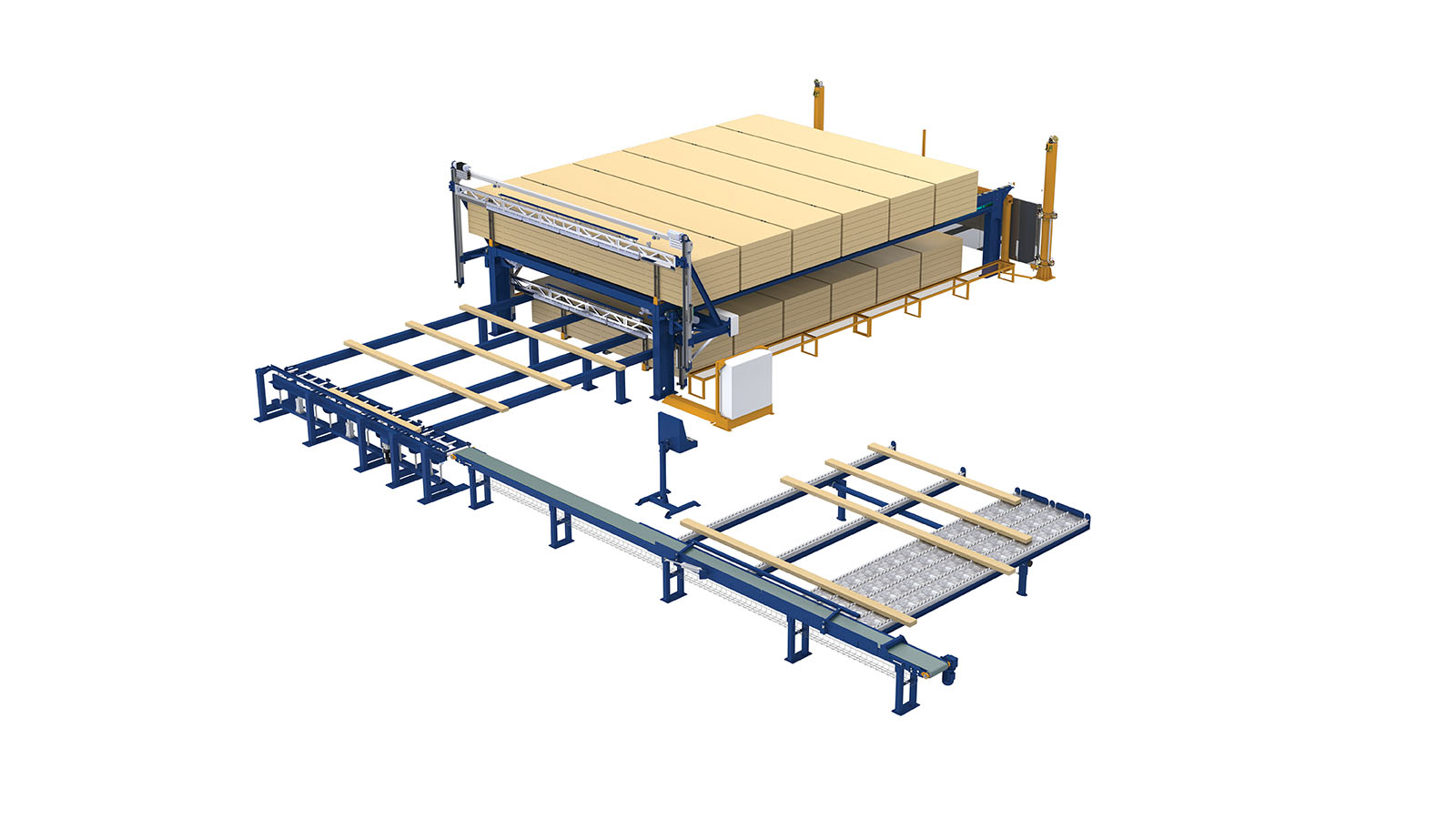

3D MODEL
features & OPTIONS
- Utilises the Vekta PackFeeder’s dual-level design allowing for optimal space and stock utilisation
- Flexible loading – option to split packs and reconfigure bunk sizes to maximise versatility
- Bunk space for 20 typical Aus sized timber packs*
- Manually create a picklist directly on the system and select grade, length and type of timber or open a pre-existing third party picklist and hit start
- Currently being developed and tested to pick non-timber materials such as sheathing, metals and cement sheets
- Integratable with third party systems

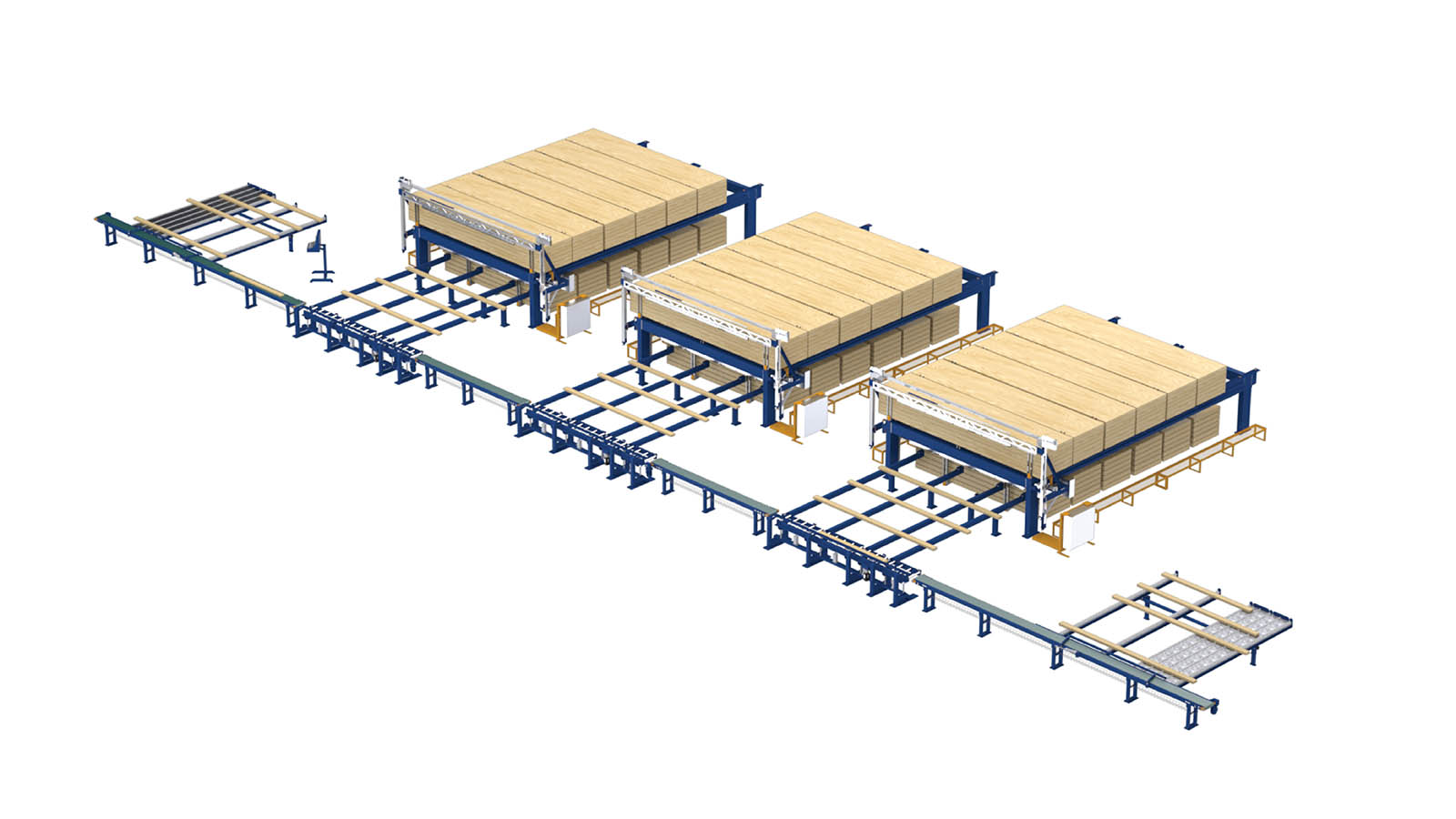

- Combine multiple PackFeeders into your PickFeeder system to increase volume or range of product
- Include Vekta Automated Infeed Table & Direct Delivery System to deliver product to different areas
- Include stacking and lifting solutions to automate even more of your picking and bundling process
- Pick and feed a third party saw or pre-pick timber for jobs in the exact order your need it
SPECIFICATIONS
| Max. number of products per PackFeeder | 24* |
| Typical pick cycle time | 15 s (up to 2 boards at a time) |
| Lower deck max length | 4200 mm |
| Upper deck max length | 6000 mm |
| Supported product sizes | Min – 70 mm x 35 mm x 2400 mm Max – 300 mm x 45 mm x 6000 mm |
| Power req. | 32 A @ 415 VAC / 480 VAC |
