WHAT IT DOES
Capable of cutting and nailing your wall components as needed and delivered straight to the point-of-use.
Operate in cut, assemble, or cut-and-assemble modes to suit your factory processes – fabrication of sub-assemblies has never been easier.

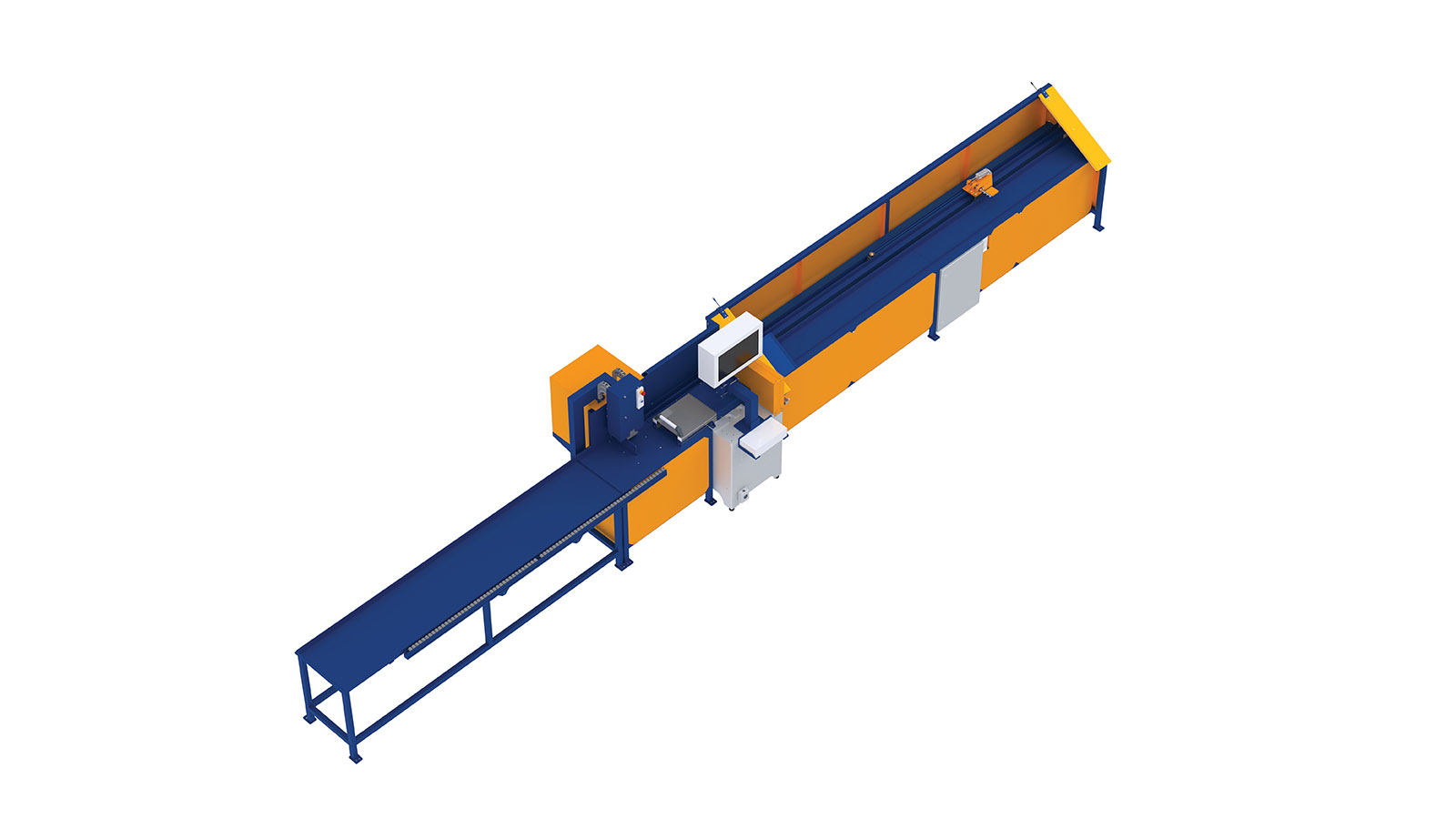

3D MODEL
features & OPTIONS
- Small footprint, safe and easy to use
- Highly versatile for all sub-assemblies
- Hybrid operation – accepts pre-cut members or cut from raw timber
- Highly accurate progressors ensure quality component assembly with minimal human error
- Nog Master – a dual progressor variation specifically suited to high speed stud/noggin cutting and assembly also available
- Flexible nail gun integration, with larger coil options
- Backwards compatible with future modular upgrades (screwing, drilling)
SPECIFICATIONS
| Timber width / height | 70-140 mm wide 35-45 mm thick |
| Raw timber / cut stud max length | 4200 mm |
| Cutting cycle time Nailing cycle time | 3-4 s |
| Cutting accuracy* | ±1 mm |
