Whydo you need it?
- Removes the hazardous manual handling task and the risk for one or many people
- Scalable delivery, finishing and stacking solutions that focus on speed, efficiency and increased plant productivity
- Modular system option including integrated and stand-alone finishing tables, idle rollers, chain drives, and automated stacking.
- Bespoke design can handle frames of any size, weight or length.
- Can be integrated into current systems for Fabrication
SEE IT IN ACTION
You get someone on there and within half a day they can operate the saw themselves. They pick it up very easily, without any concerns that they will have an accident, unlike the pull saws.
What we used to cut in a day, the Razer will do in a couple of hours. Also our use of timber has improved. We used to carry a lot more stock and different lengths.
This process has been great, the technicians have been extremely helpful in answering questions on product knowledge and resolving our issues in a timely manner.
FAQ’sabout StakPro Frame
Does the StakPro Frame work with my existing jig system?
Yes, any length powered or gravity rollers can be integrated for transport and buffering. The Auto Nailer and Standard Nailer: Framing Fabrication systems can also be utilised in the same linear system. StakPro Frames can also be integrated with finishing tables and can be upgraded with one-touch stacking automation.
How much room would I need for a StakPro Frame?
Width is 2290mm and length is 8300mm (variable).
Do they come weight calibrated?
Each system is calibrated at a safe working environment with a safe load of 80Kg
Which direction is the stacking configured?
You have the option of stacking either away or towards the direction of the apex of the truss.
Is the StakPro Frame easy to maintain?
That’s the best part, it is a simple and reliable solution that is designed to be easy to maintain and repair.
Got another question? Send us a message

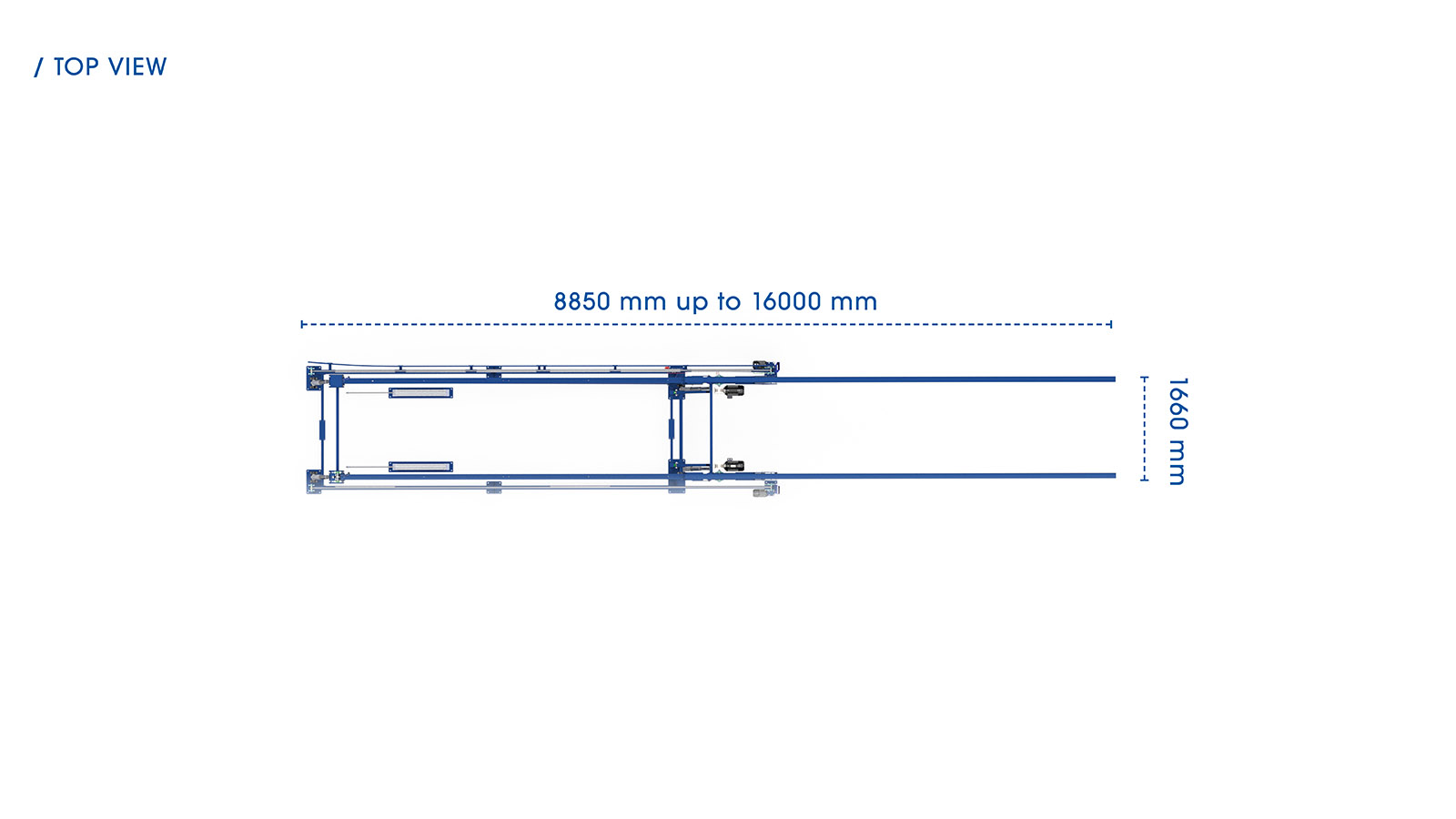

StakPro Frame Specifications
StakPro Frame | |
---|---|
Safe working load (SWL) | 250 kg |
Width – Maximum footprint | 3850 mm |
Height – Static infeed conveyor | 925 mm |
Height – Maximum lift from floor | 1570 mm |
Length – Fully retracted | 8850 mm |
Length – At full extension | 16000 mm |
Extension Stroke | 7600 mm |
Spacing between extension beams | 1700 mm |
Complete cycle time | 1.5 min* |
Inclusions | Control: Manual operation via remote pendant and/or Automation Kit |
